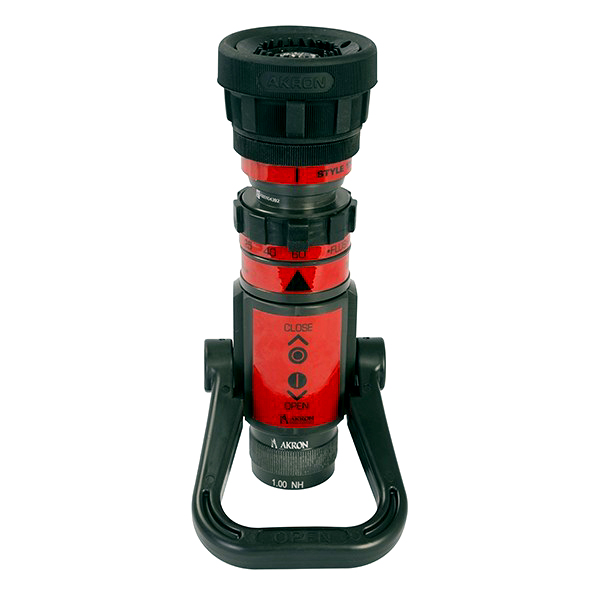

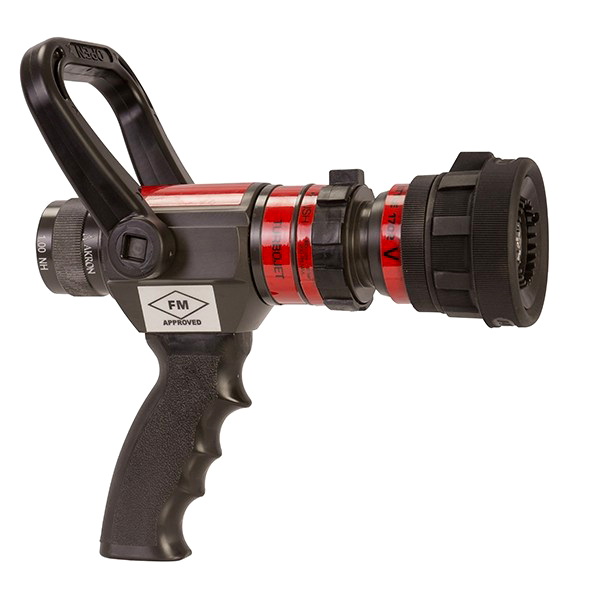

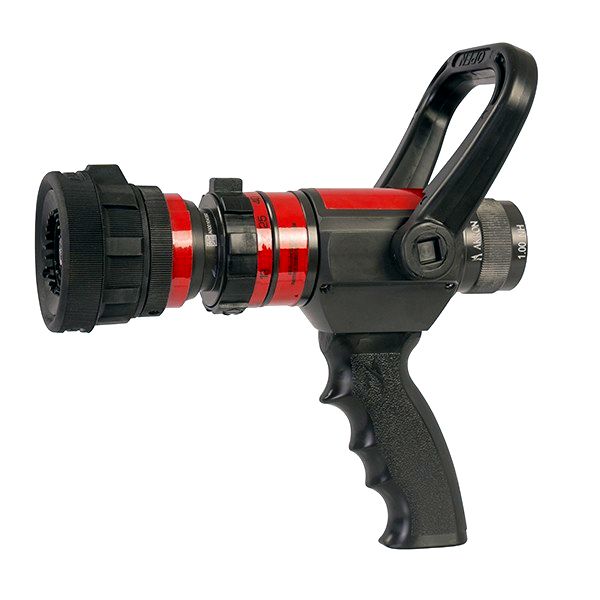

【1702】1'' Turbojet Nozzle
Turbojet Nozzle Specifications
Lightweight fog and straight stream nozzle with multiple fixed constant gallonage settings.
The nozzle shall have spinning teeth, multiple pattern detents, a one piece solid rubber-like handle with dual handle stops,
dual drive trunnions and an extruded Pyrolite body.
The nozzle shall also have a minimum 110° angle at wide fog, a full-time swivel inlet, come with a ten year warranty,
be capable of flushing without shutting down.
Must meet all aspects of NFPA 1964.

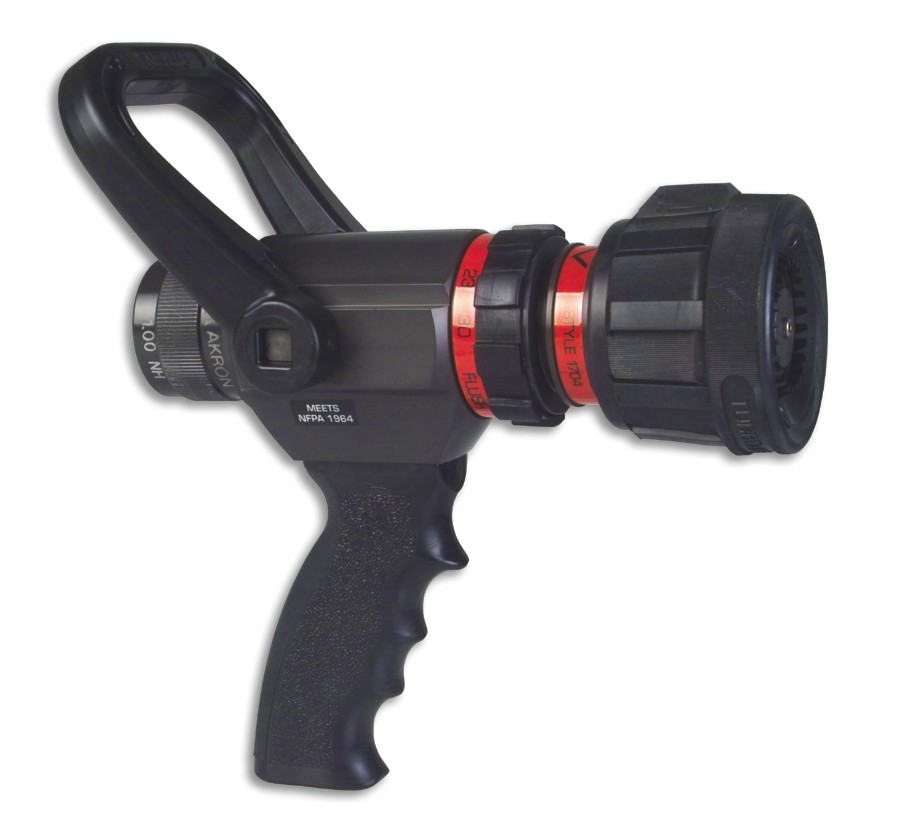

【1704】1'' Turbojet Nozzle
Turbojet Nozzle Specifications
Lightweight fog and straight stream nozzle with multiple fixed constant gallonage settings.
The nozzle shall have spinning teeth, multiple pattern detents, a one piece solid rubber-like handle with dual handle stops,
dual drive trunnions and an extruded Pyrolite body.
The nozzle shall also have a minimum 110° angle at wide fog, a full-time swivel inlet, come with a ten year warranty,
be capable of flushing without shutting down.
Must meet all aspects of NFPA 1964 with test results available.

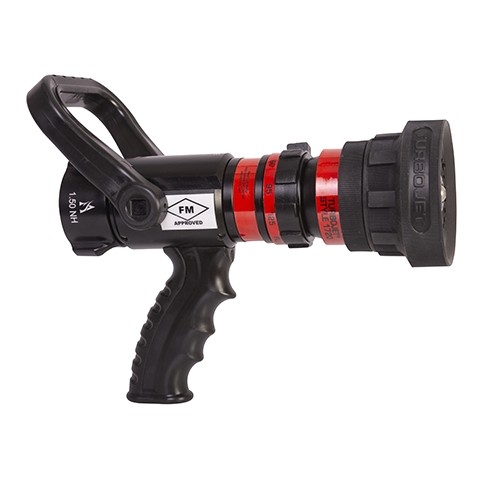

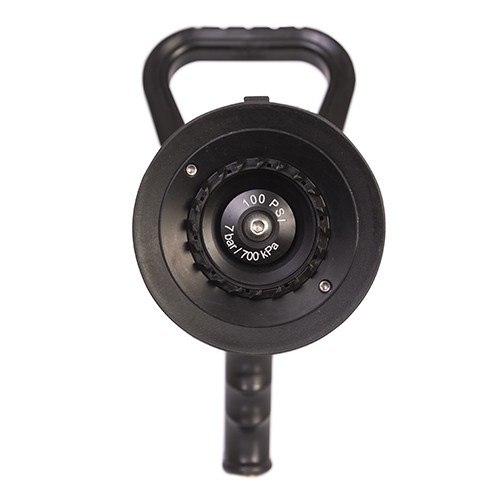

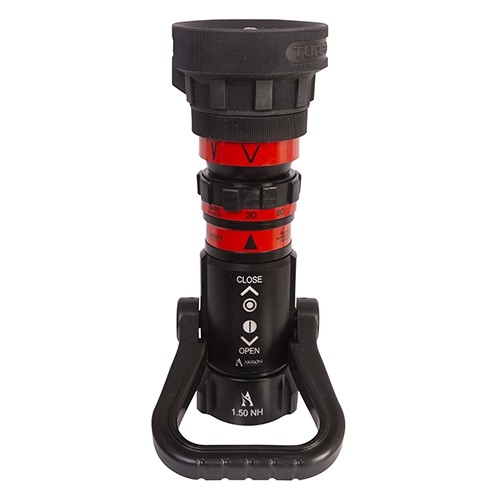

【1720】1-1/2'' Turbojet Nozzle
Turbojet Nozzle Specifications
Lightweight fog and straight stream Style 1720 nozzle with multiple fixed constant gallonage settings of
30-60-95-125 GPM (115-230-360-475 lpm) at 100 & 75 psi (7 & 5 bar) shall be provided.
CE flow at 87 psi or 6 bar is 100-200-300-450 LPM.
The nozzle shall have spinning teeth, multiple pattern detents, a one piece solid rubber-like handle with dual handle stops,
dual drive trunnions and an extruded Pyrolite body.
The nozzle shall also have a minimum 110° angle at wide fog, a full-time swivel inlet, come with a ten year warranty,
be capable of flushing without shutting down.
Must meet all aspects of NFPA 1964.

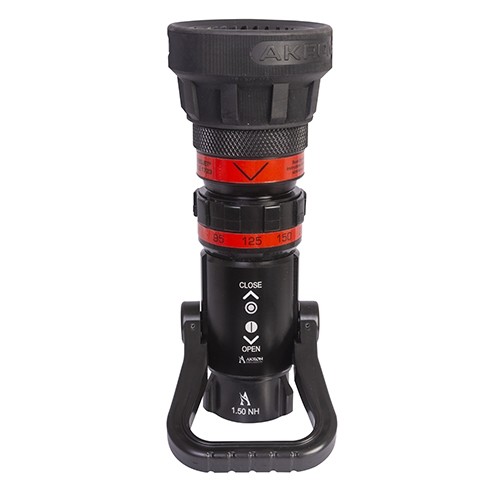

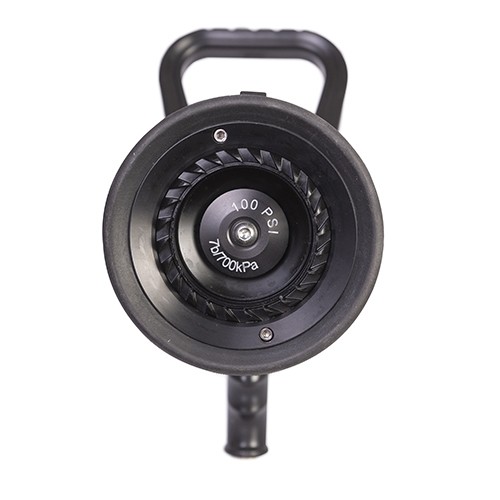

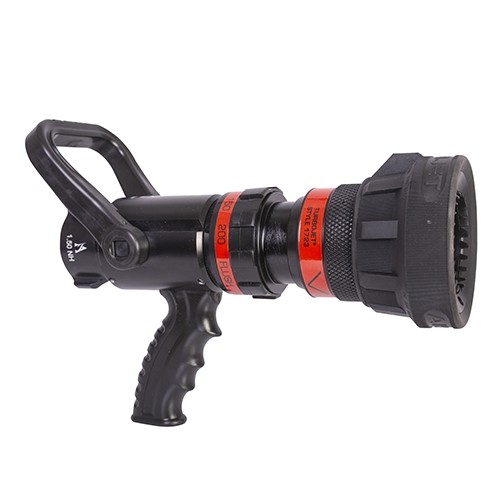

【1723】Mid-Range Turbojet Nozzle
Mid-Range Turbojet Nozzle Specifications
Lightweight fog and straight stream Style 1723 nozzle with multiple fixed constant gallonage settings of
95-125-150-200 gpm (360-475-550-750 lpm) @ 100 or 75 psi (7 or 5 bar).
The nozzle shall have spinning teeth, multiple pattern detents, a one piece solid rubber-like handle with dual handle stops,
dual drive trunnions, pistol grip and an extruded Pyrolite body.
The nozzle shall also have a minimum 110° angle at wide fog, a full-time swivel inlet, come with a ten year warranty,
be capable of flushing without shutting down.
Must meet all aspects of NFPA 1964 with test results available.
The Turbojet is a constant gallonage nozzle (flow remains the same in all patterns) with multiple flow settings for operator flow control.
Use the Turbojet one time and see why it's the nozzle of choice by firefighters worldwide.
